Plate-Fin Heat Exchanger

Space and weight savings over traditional shell and tube exchangers.

The FlexEnergy Plate-Fin Heat Exchanger (PFHE) provides an efficient, compact way to recover waste heat from a high temperature gas stream and recycle exhaust energy to improve processes.

High Efficiency. High efficiency design allows for a compact, lightweight heat exchanger specifically used for gas-to-gas applications and can be customized to function in two modes, including counter-current, for the best heat transfer, or cross-flow, to accommodate piping restraints, requiring minimal space for installation and servicing.

Temperature Limitations. Units operate up to 1,650°F depending on materials.

Pressure Drop. The FlexEnergy PFHE provides the low pressure drop ideally suited to most waste gas heat recovery applications.

Materials. FlexEnergy uses a variety of materials to create units capable of performing in nearly every temperature environment. For high heat applications, we have the expertise to manufacture using super alloys like Inconel, Hastelloy, and many grades of Stainless Steel.

Modularity. Multiple units can operate in parallel for larger duties.

Customized. FlexEnegy’s Heat Exchangers are highly customizable and adaptable to different applications and design constraints. Contact our team to discover a solution to your energy recovery needs.

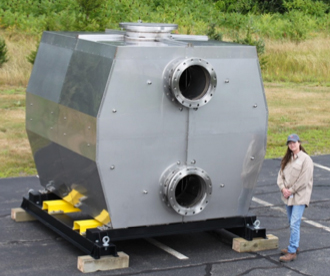

Plate-Fin Heat Exchanger

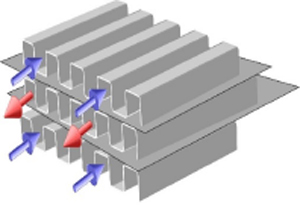

Plate-Fin Counter Flow Design

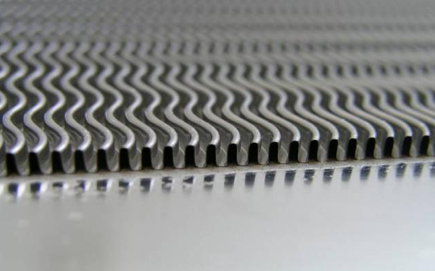

Plate with Ruffle Fin

Plate-Fin Heat Exchanger Advantages:

  • High thermal efficiency
    • 90%+ efficiency in heat recovery
  • Compact and lightweight
    • 4 to 5 times less space than traditional S&T with significant weight savings
  • Counter current or cross flow
  • Low pressure drop design
  • Operates up to +1,650°F
    • Customizable to fit your specific needs, contact Flex Energy.

Value Proposition:

  • Reduce energy consumption from waste heat recovery
  • Space and weight savings over traditional shell and tube exchangers
  • Increased uptime
  • Meet rising emission limitations cost effectively

Additional Heat Exchanger Products and Information

Heat Exchanger Technology

FlexEnergy’s highly efficient heat exchanger designs are the most advanced gas-to-gas heat exchangers available, allowing waste heat from Combined Heat and Power (CHP) units to be recovered and repurposed for dramatically improving process efficiency.

Fin-Tube Heat Exchanger

  • Fin-Tube Heat ExchangerHigh thermal efficiency
  • Compact and lightweight
  • Counter current or cross flow
  • Low pressure drop design
  • High pressure applications (1,000psi and lower)
  • Base design performs up to 1,650°F
  • Customizable to fit your specific needs, contact Flex Energy.

Plate-Fin Heat Exchanger

  • Plate-Fin Heat EchangerHigh thermal efficiency
  • Compact and lightweight
  • Counter current or cross flow
  • Low pressure drop design
  • Operates up to +1,650°F
  • Customizable to fit your specific needs, contact Flex Energy.
